The Connect Series amplifiers use a Web UI to configure speaker tunings per-channel basis. This includes all of the DSP settings you have set for each channel, such as your input settings, Smart Power Bridge, HiZ and LowZ, Signal Generator settings, crossover settings, EQ settings, limiter information, and load monitoring settings. Once your DSP settings are complete, you can export them all as a speaker tuning file which you can save and load onto any other channel or Connect Series amplifier.
Here’s how you do it:
How to Save CONNECTSERIES Speaker Tunings
How To Save & Load Connect Series Speaker Tunings:
First, connect to your Connect Series amplifier using one of the three connectivity options.

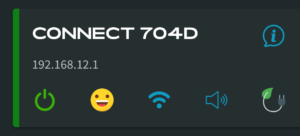

Once your device is connected to your amplifier, you will see a list of every amplifier that is connected to the same network. Find the amplifier you want to export settings for and select it.
Now, select the crossover icon to open the “Crossover” section for each channel.

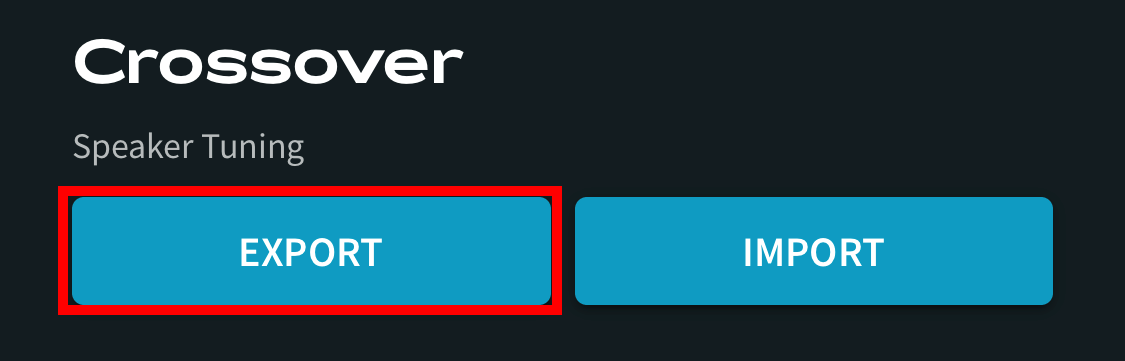

Under the “Speaker Tunings” text, click the “Export” button for the channel that you would like to export speaker tunings on.
Depending on your browser’s file download settings, you will either be prompted to rename the .JSON file and save it somewhere on your computer or, the .JSON file will automatically download with a generic name.
You have now exported and saved speaker tuning for a single channel on your amplifier.
How to Load CONNECTSERIES Speaker Tunings
How To Save & Load Connect Series Speaker Tunings:
Follow steps 1-3 above to connect to your amplifier and navigate to the Crossover section of the Web UI.
Click the “Import” button on the channel that you wish to import your speaker tuning for.
Select the JSON file that contains your speaker tunings and click “Open”
You have now imported your speaker tunings into a single channel on your amplifier.
