SMART AMP | 4 CHANNELS | 120W PER CHANNEL
SMART AMP | 4 CH | 120W PER CH
The Connect Series 124D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Register for your free LEA Cloud account at leaprofessional.cloud
Warranty
LEA offers a 5 Year Warranty Internationally. Please contact your local distributor for warranty information for your specific country.
US customers can register your products to extend your warranty to 6 years.
Downloads
USER MANUALS
Network Connect Series (English)
Network Connect Series (Spanish)
SharkWare -MAR 2023
SharkWare – (Korean)
QUICK START GUIDES
Connect Series (English)
Connect Series (Spanish)
Connect Series Half-Rack
AC Current & Thermal Spec: 100VAC
AC Current & Thermal Data: 120VAC
AC Current & Thermal Data: 240VAC
1504 & 1504D PowerCon Wiring Document
30W, 60W, 120W CB Test Certificate
30W, 60W, 120W Declaration of Conformity
Connect Series Half-Rack KETI Certificate
LEA Connect Declaration of Conformity – Japan
Japan Radio Law Wi-Fi Certificate
India BIS Certification Letter
EU Red Directive Wi-Fi Conformity
EMC – 350_700 – EN55103-2 – Immunity
Connect Series Touch UKCA LVD VOC
Connect Series Touch UKCA LVD Report
Connect Series Touch Declaration of Conformity
Connect Series Touch CE LVD VOC
Connect Series Touch CE LVD Report
Connect Series Touch CB Test Report
Connect Series Touch CB Test Certificate
CCC Report – CS EMC and Safety
80W & 160W LEA Connect Declaration of Conformity
80W & 160W CB Test Certificate
350W & 700W CB Test Certificate
1504 & 1504D PSE Certification
User Manual & Quickstart
Spec Sheet
Firmware Files
AC & Thermal
CAD / Drawing
Cloud Documents
3rd Party Control
Open API Documentation
Network Security
Accessories Documentation
Product Certifications
30W, 60W, 120W CB Test Certificate
30W, 60W, 120W Declaration of Conformity
Connect Series Half-Rack KETI Certificate
LEA Connect Declaration of Conformity – Japan
Japan Radio Law Wi-Fi Certificate
India BIS Certification Letter
EU Red Directive Wi-Fi Conformity
EMC – 350_700 – EN55103-2 – Immunity
Connect Series Touch UKCA LVD VOC
Connect Series Touch UKCA LVD Report
Connect Series Touch Declaration of Conformity
Connect Series Touch CE LVD VOC
Connect Series Touch CE LVD Report
Connect Series Touch CB Test Report
Connect Series Touch CB Test Certificate
CCC Report – CS EMC and Safety
80W & 160W LEA Connect Declaration of Conformity
80W & 160W CB Test Certificate
350W & 700W CB Test Certificate
1504 & 1504D PSE Certification
Speaker Tunings
Power Rating
|
MODEL
|
CH COUNT
|
2Ω
|
4Ω
|
8Ω
|
25V
|
70V / 100V
|
|---|---|---|---|---|---|---|
|
CONNECT 124D
|
4
|
60W
|
120W
|
120W
|
120W
|
120W
|
**Power ratings are stated on a per-channel basis.
Example: 120 watts at 8 ohms = 120 watts on each individual channel
|
MODEL
|
CH COUNT
|
2Ω
|
4Ω
|
8Ω
|
25V
|
70V / 100V
|
|---|---|---|---|---|---|---|
|
CONNECT 124D
|
4
|
60W
|
120W
|
120W
|
120W
|
120W
|
**Power ratings are stated on a per-channel basis.
Example: 120 watts at 8 ohms = 120 watts on each individual channel
No software to download; browser-based and works on any device
Remote control and monitoring from anywhere in the world — no additional costs required
A vast selection of third-party API’s for ultimate system integration
Simplifies control across large audio installs and includes offline mode
Processing that allows for enhanced audio quality and more precise sound
Simplifies system installations with scalable, high-resolution audio over IP (AoIP)
A vast range of tunings makes the install quicker and protects speakers from damage
Ensures the amplifier operates safely with preventative maintenance
Contributes to enhanced system performance and long-term reliability
Eliminates the need for separate amplifiers for different speaker impedances
Doubles power on one channel without sacrificing a channel, maximizing performance and flexibility
Ensures that the amplifiers operate efficiently, reducing energy waste and cooling costs
Specs
INPUTS
Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
***Note – Unbalanced and RCA inputs share the same analog input channel
Dante: 4 x 4 Dante at 48kHz, Multicast or Unicast
AES 67: Configurable via the Dante Controller software
THD+N
0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL
102dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK
70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP ARCHITECTURE
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX
Routable matrix; any input to any output with primary and secondary input priority
CROSSOVERS
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ
8 Band Parametric EQ per channel
OUTPUT DELAY
100ms per channel
OUTPUT PROTECTION
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING
Peak Voltage and RMS Voltage
LOAD MONITORING
Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
USER INTERFACE
Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
EXTERNAL I/O
External I/O In: Toggles Remote On/Off
External I/O Out: Indicates Amplifier Health
4 general Purpose input and output pins for general input
Triggering and output statuses – Coming Soon
AC MAINS
100VAC – 240VAC +/- 15% 50Hz or 60Hz
POWER SUPPLY
Universal Switch Mode Power Supply
DIMENSIONS (L x W x H)
Product: 11.82” x 8.58” x 1.71″ (300.11mm x 218mm x 43.5mm)
Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm)
WEIGHT
7lbs / 4.1kg | Shipping: Coming Soon
COOLING
Front to Rear Variable Fan Speed Cooling
Fan Noise at idle is 50dB @ 1m
Fan Noise at 50% is 57dB @1m
Fan Noise at full speed is 63dB @ 1m

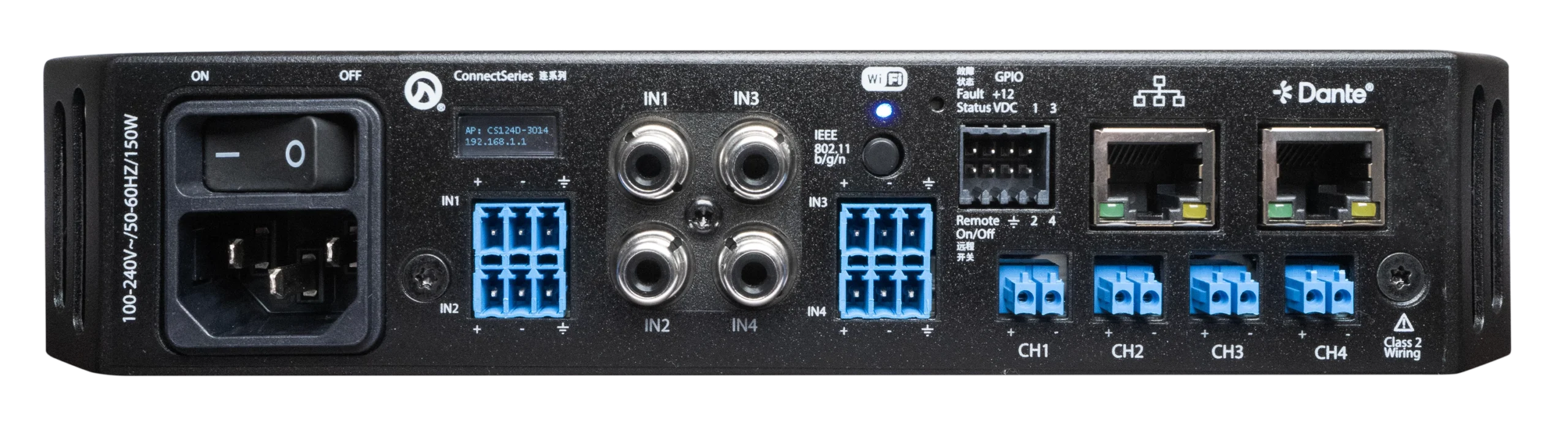

FAST 10/100MB Ethernet
GPIO Port
Wi-Fi Access Point
IEC Type Inlet
Power Button
LCD Display
RCA Unbalanced Inputs
Analog Balanced Inputs
Analog Balanced Inputs
Channel Outputs
Dante Input
