RCAF-2 Female RCA to Amphenol Anytek 3-Pin Connector
In an effort to reduce any points of friction for CONNECTSERIES users, we have created custom cables to aid users that are attempting to input an unbalanced RCA signal through the amp’s analog inputs.

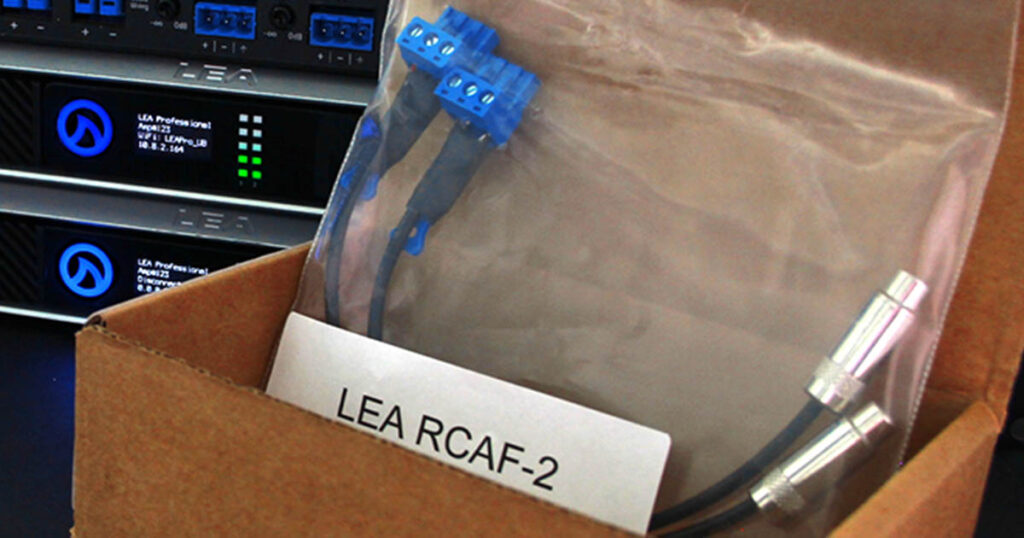

Introducing the LEA RCAF-2, female RCA to Amphenol Anytek balanced 3-pin connector for LEA Professional CONNECTSERIES products.
Let’s dive in for a closer look!
THE SPECS
Female RCA to Amphenol Anytek balanced 3-pin connector
- 9 inches (25.5mm) in length
- Ships 2 connectors per package
- Nickel Plated Female RCA Connector
- 22 AWG (0.33 mm squared) 2 Conductor plus Ground Shielded Audio Cable
- Assembled in the USA with globally sourced parts.
- Box Shipping Weights & Dims
- .25lbs (.11kg)
- 5” x 4.25” x 2.25” (165.1mm x 107.95mm x 57.15mm)
Recommended maximum RCA cable length 6 ft (2 meters).
RCAF-2
Female RCA to Amphenol Anytek balanced 3-pin connector
The RCAF-2 is used to input an unbalanced RCA signal into the LEA CONNECTSERIES Analog Input.

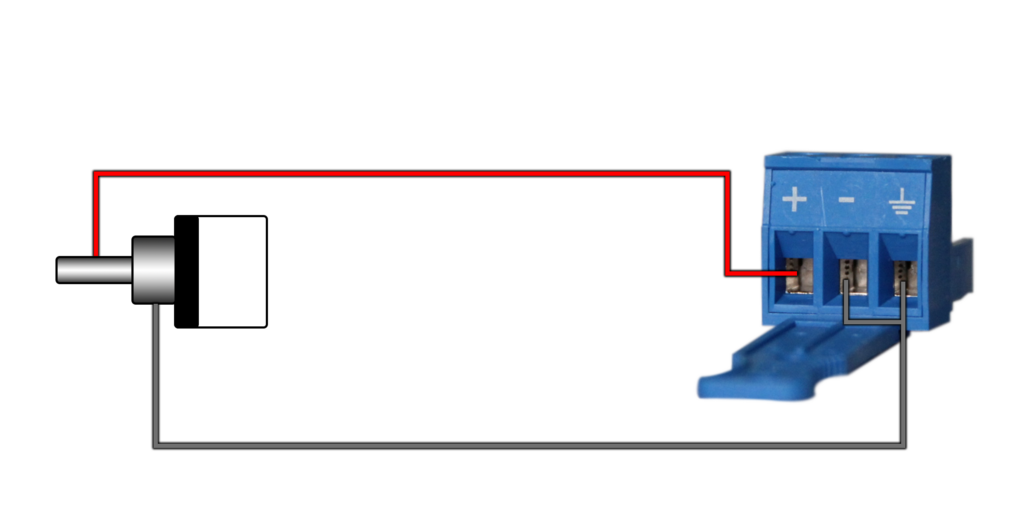

WIRING GUIDE
Female RCA to Amphenol Anytek balanced 3-pin connector
If you have any question or feedback about the RCAF-2 female RCA to Amphenol Anytek connector, feel free to leave them in the comments below or reach out to us on our social media channels.
